Modular design
Cut it. Extend it. Reuse it.
Fuel level monitoring
Eurosens DominatorFuel level sensors
Accurate fuel level and volume monitoring — wired or Bluetooth. For vehicles, machinery, fuel tanks and stationary installations.
- ±1% accuracy
- −40…+85 °C
- IP67
- Wired + Bluetooth BLE
Wired · Tank → Dominator → GPS tracker
Bluetooth · Tank → Dominator BT ⇢ BLE ⇢ tracker
One sensor platform
Wired or wireless?
Same measuring platform, two installation philosophies. Pick the branch that matches your tank, vehicle and tracker.

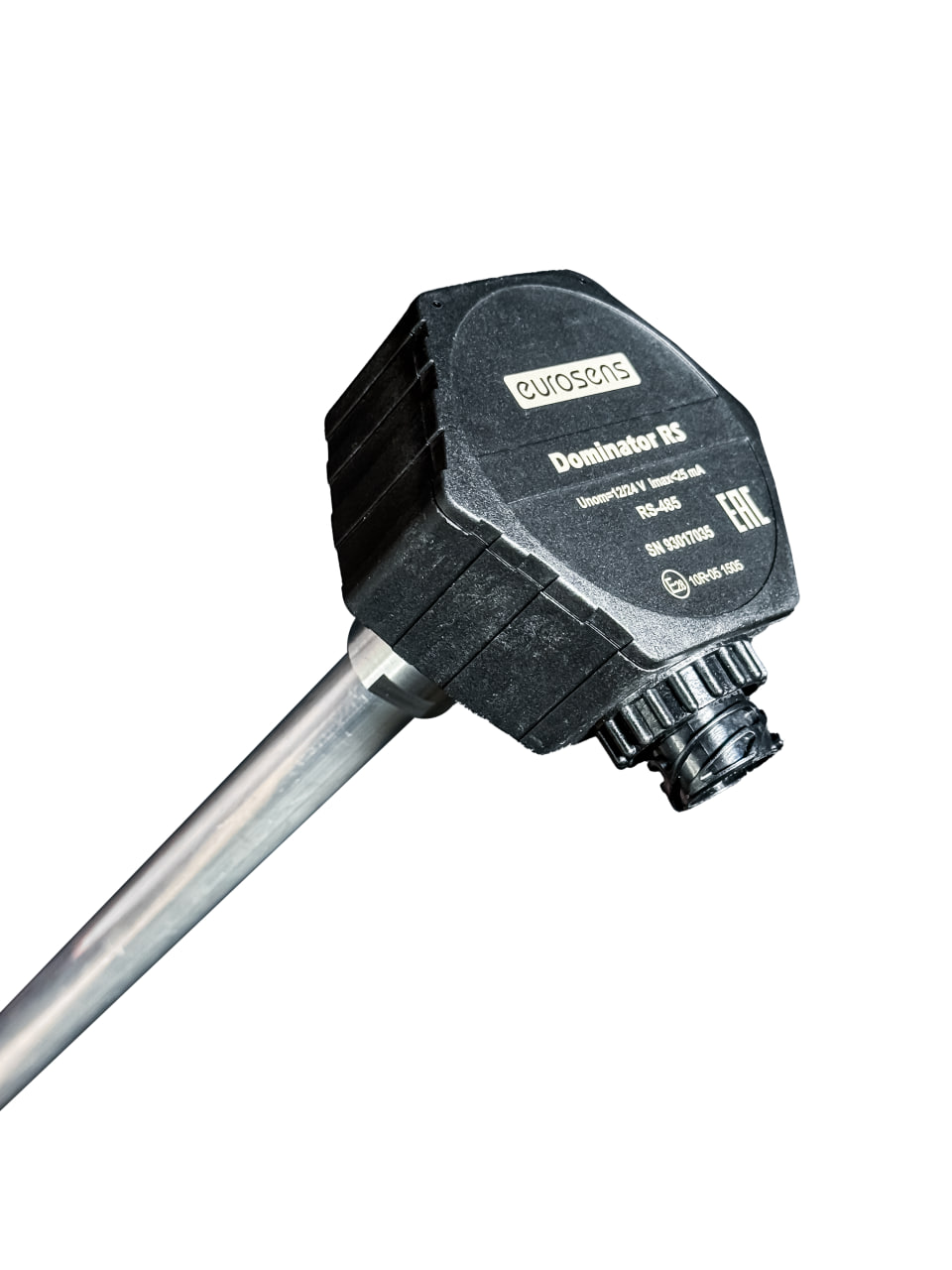

Wired Dominator
For permanent installations with direct connection to a GPS/GLONASS tracker, display or control system.
- RS485 / RS232
- CAN J1939
- Analog / Frequency
- LLS / MODBUS
Dominator BT
Autonomous fuel level sensor with Bluetooth Low Energy. No signal cable routing between the sensor and receiver.
- Bluetooth BLE
- Built-in battery
- Up to 200 m*
- Smartphone configuration
* Direct line of sight.
Why Dominator
Built to be installed, serviced and reused

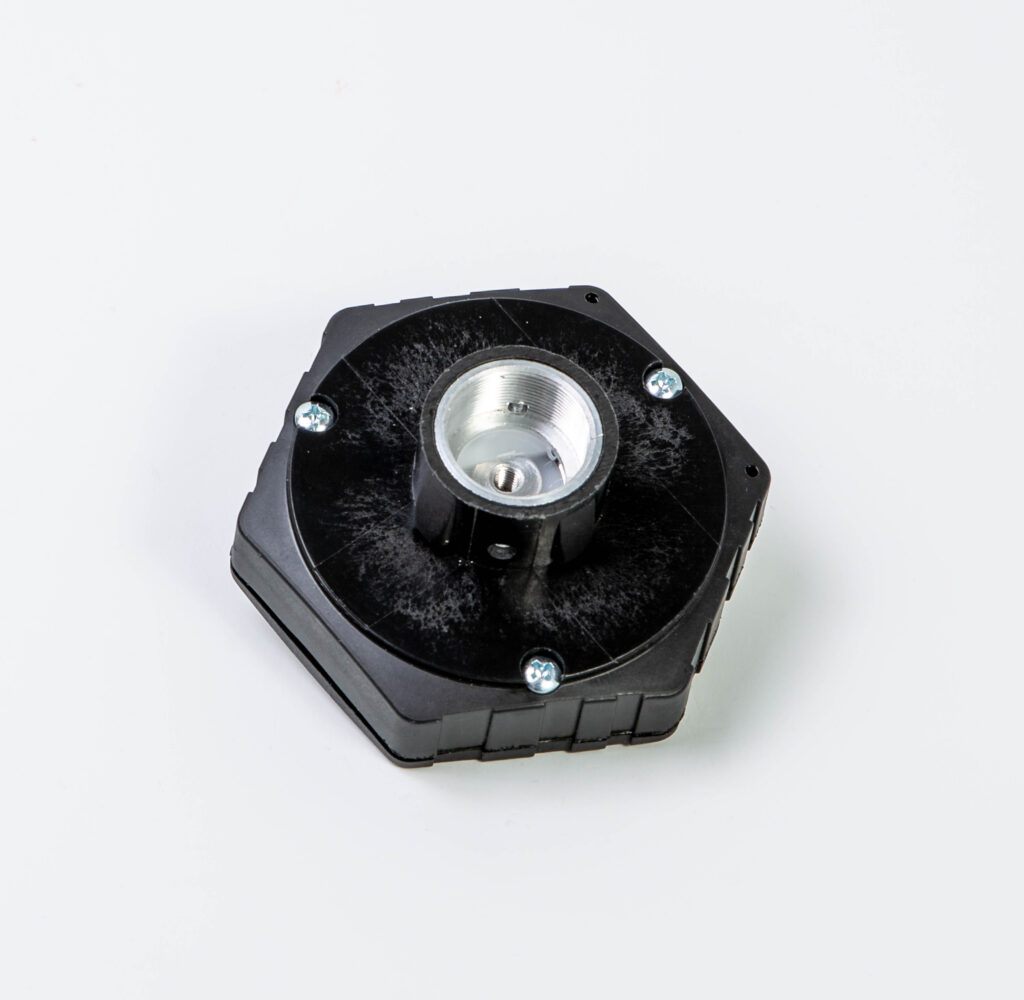

Bayonet mounting
Fast removal without dismantling the tank mount.
Fuel volume inside the sensor
Level in — liters out.
Temperature compensation
Stable measurements from −40 to +85 °C.
Fuel theft detection
Fuel drain detection and alarm output.
Built for vehicles
Automotive connector. IP67. Self-diagnostics.
Which Dominator do I need?
Start from your tracker input, not from a model name
Recommended
Select your tracker input
Not sure? Send us your tracker model — we'll check compatibility.
Eurosens Dominator Wired
One sensor platform for virtually any common telematics interface
| Model | Main interfaces | Configuration / note |
|---|---|---|
| AF | Analog / Frequency | Configuration: K-Line |
| RS | RS485 / RS232; Frequency / discrete | Configuration: K-Line |
| RS485 | RS485 | Configuration via RS485 |
| CAN | CAN; Frequency / discrete | Configuration: K-Line |
| AFRS | RS485 / RS232; Analog / frequency / discrete | Multi-interface |
| RSCAN | RS485; CAN; Frequency / discrete | Multi-interface |
Supply
10–50 V*
Accuracy
±1%
Temperature
−40…+85 °C
Protection
IP67
Reverse polarity protection
Yes
* Electrical parameters and interface availability depend on the modification — confirm against the datasheet of the selected version.

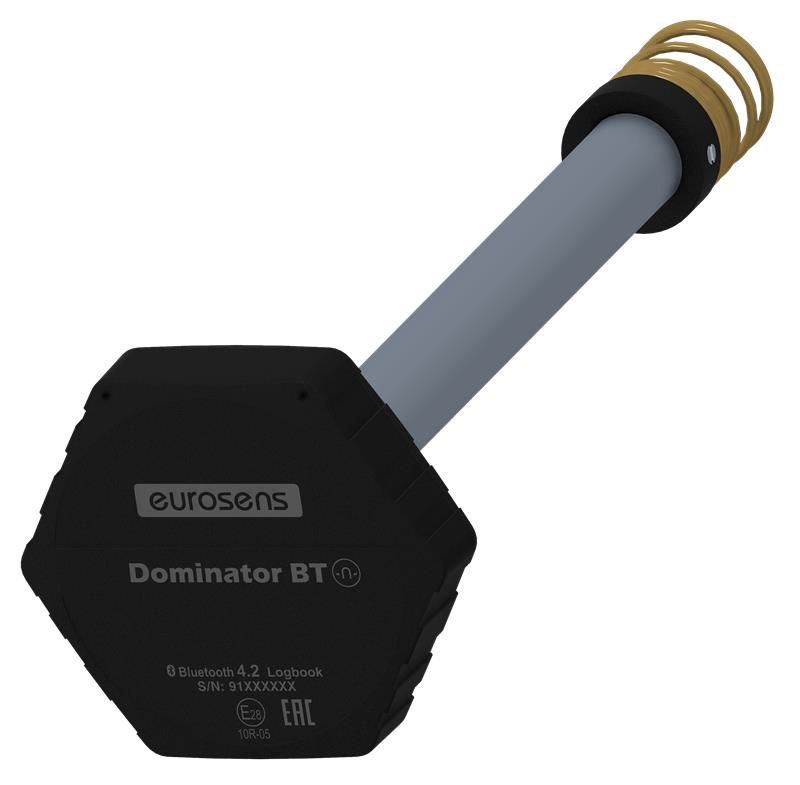

Dominator BT
No sensor cable. No complicated cable routing.
Eurosens Dominator BT — autonomous wireless fuel level monitoring over Bluetooth Low Energy.
Tank→Dominator BT⇢ BLE ⇢GPS tracker / BT-COM→monitoring platform
Accuracy
±1%
BLE range
up to 200 m*
Designed battery operating time
5 years**
Operating temperature
−40…+85 °C
Protection
IP67
* Direct line of sight. ** Designed battery operating time; not a warranty period.
Where wireless makes sense
Trailer
No cable between tractor and trailer.
Hard-to-reach tank
No long sensor cable routing.
Stationary tank
Wireless transmission to a nearby receiver.
High cable damage risk
No external sensor signal cable to cut or damage.
What you actually monitor
From a level reading to fuel you can account for
- Fuel level
- Fuel volume
- Refueling events
- Fuel drains
- Real fuel consumption analysis
Fuel graph · refuel & drain
● Refueling● Fuel drain

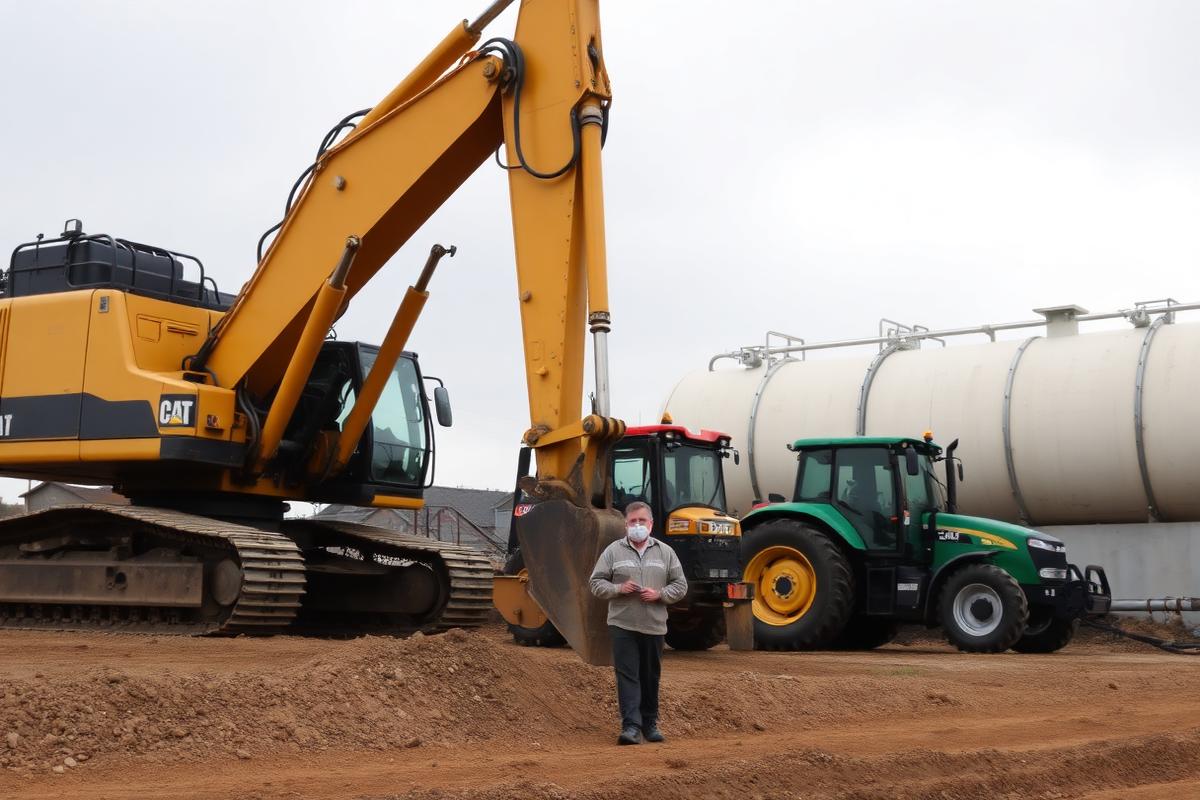

Applications
Where Dominator is installed
- Trucks & buses
- Construction & agricultural machinery
- Tankers & trailers
- Diesel generators
- Stationary fuel tanks
Installation
Four steps on the vehicle
01Measure tank depth

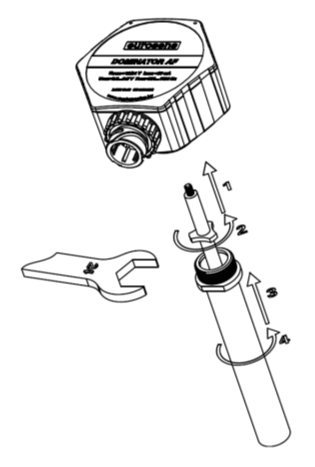

02Cut or extend the electrodes

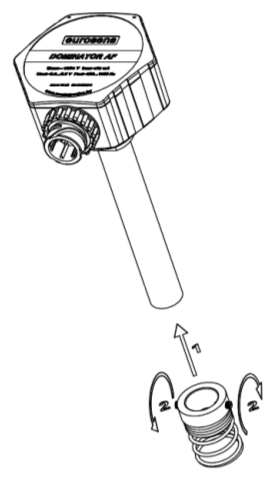

03Install the bayonet mount

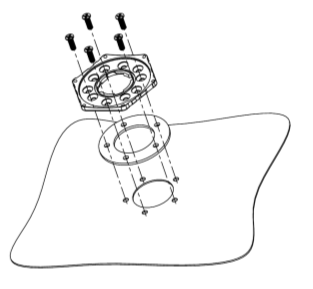

04Install, calibrate and sealFor Dominator BT: configure from your smartphone. Full mounting instructions and torque values are in the downloadable installation manual — see Documentation Center.
Tank calibration
Tank calibration doesn't always mean filling the tank step by step
Measured filling / draining
Build the height-volume table from controlled portions.
Tank geometry
Calculate the table from tank shape and dimensions.
Import an existing table
Reuse a height-volume table you already have.
Compatibility
Designed for integration with GPS tracking and control systems
- RS485
- LLS
- MODBUS RTU
- RS232
- CAN J1939
- Analog
- Frequency
- Bluetooth BLE
Trust
Certified for professional installations
E-mark
ТР ТС 020/2011
Type approval — Belarus
Type approval — Russia
Type approval — Kazakhstan
Explosion-proof versions available
Important: Explosion-proof (Ex / ТР ТС 012) certification applies only to specific modifications, not to the standard Dominator range. Always confirm the certificate against the exact model before quoting compliance.
Manufacturer
Developed and manufactured by Mechatronics
Eurosens equipment is supplied to telematics providers in 90+ countries.
Documentation center
Everything you need for installation and integration
FAQ
Questions from integrators and fleets
Choose wired when the tracker has a free RS485/CAN/analog input and cable routing is straightforward. Choose Dominator BT for trailers, hard-to-reach tanks, stationary tanks or where a signal cable would be at risk.
Final step
Get the right Dominator configuration and price
Tell us the vehicle, the tracker and the tank — we come back with a configuration, lead time and price.
Our engineers can also check compatibility with your GPS tracker.
